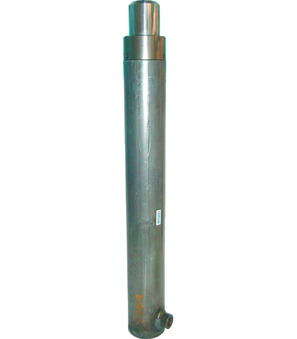

Plunger cylinder HT03400600
plunger cylinder series HT0; weldable, without bracket; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter outside 60mm; diameter rod 40mm; stroke 600mm; connection 3/8"; length 738mm
Weight: 0.8 Kg
Short Itemnumber:HT03400600
plunger cylinder series HT0; weldable, without bracket; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter outside 60mm; diameter rod 40mm; stroke 600mm; connection 3/8"; length 738mm
This product is no longer available.
Specifications
| Connection | 3/8" |
| Stroke | 600 mm |
| Length | 738 mm |
| Diameter Outside | 60 mm |
| Diameter Rod | 40 mm |
