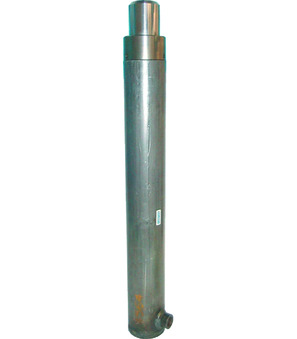

Plunger cylinder HT02300300
plunger cylinder series HT0; weldable, without bracket; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter outside 50mm; diameter rod 30mm; stroke 300mm; connection 3/8"; length 426mm
Weight: 4.73 Kg
Short Itemnumber:HT02300300
plunger cylinder series HT0; weldable, without bracket; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter outside 50mm; diameter rod 30mm; stroke 300mm; connection 3/8"; length 426mm
This product is no longer available.
Specifications
| Connection | 3/8" |
| Stroke | 300 mm |
| Length | 426 mm |
| Diameter Outside | 50 mm |
| Diameter Rod | 30 mm |
