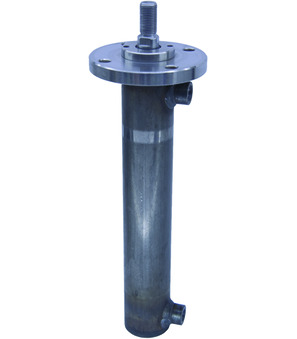

Hydraulic cylinder Double acting HMF440...
hydraulic cylinder double acting series HMF; flange bracket, with thread at the piston rod; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter piston 70mm; diameter rod 40mm; rod thread M30x2; connection 3/8"
Weight: 5.0 Kg
Short Itemnumber:HMF440
hydraulic cylinder double acting series HMF; flange bracket, with thread at the piston rod; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter piston 70mm; diameter rod 40mm; rod thread M30x2; connection 3/8"
This product is no longer available.
Specifications
| Connection | 3/8" |
| Piston rod thread | M30x2 |
| Piston diameter | 70 mm |
| Diameter Rod | 40 mm |
