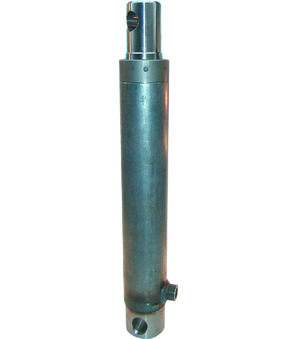

Plunger cylinder HFRT340200
plunger cylinder series HFRT; mounting hole in rod and bottom; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter rod 40mm; stroke 200mm; length 330mm; connection 3/8"; diameter outside 60mm; diameter bolt 23mm
Weight: 6.02 Kg
Short Itemnumber:HFRT340200
plunger cylinder series HFRT; mounting hole in rod and bottom; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter rod 40mm; stroke 200mm; length 330mm; connection 3/8"; diameter outside 60mm; diameter bolt 23mm
This product is no longer available.
Specifications
| Connection | 3/8" |
| Stroke | 200 mm |
| Length | 330 mm |
| Diameter Outside | 60 mm |
| Diameter Bolt | 23 mm |
| Diameter Rod | 40 mm |
