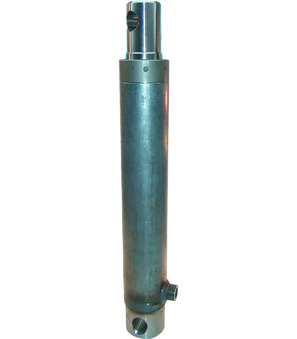

Plunger cylinder HFRT230250

Plunger cylinder HFRT230250

plunger cylinder series HFRT; mounting hole in rod and bottom; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter rod 30mm; stroke 250mm; length 350mm; connection 3/8"; diameter outside 50mm; diameter bolt 16mm


Weight: 0.09 Kg
Short Itemnumber:HFRT230250
https://infotainment-tirol.at/web/image/product.template/21505/image_1920?unique=89df686

plunger cylinder series HFRT; mounting hole in rod and bottom; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter rod 30mm; stroke 250mm; length 350mm; connection 3/8"; diameter outside 50mm; diameter bolt 16mm

This product is no longer available.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications

Connection 3/8"
Stroke 250 mm
Length 350 mm
Diameter Outside 50 mm
Diameter Bolt 16 mm
Diameter Rod 30 mm
