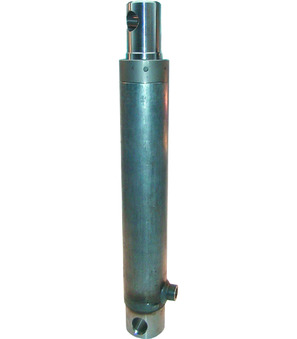

Plunger cylinder HFRT125100
plunger cylinder series HFRT; mounting hole in rod and bottom; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter rod 25mm; stroke 100mm; length 190mm; connection 3/8"; diameter outside 40mm; diameter bolt 14mm
Weight: 1.62 Kg
Short Itemnumber:HFRT125100
plunger cylinder series HFRT; mounting hole in rod and bottom; piston-rod made of steel C45, 25µm chromium plated +/-5µm; cylinder tube St 52.3 DIN2393 ISO H9; seals NBR; temperature range -25...+80°C; max. piston speed 0,5m/s.; Pmax. 200bar; diameter rod 25mm; stroke 100mm; length 190mm; connection 3/8"; diameter outside 40mm; diameter bolt 14mm
This product is no longer available.
Specifications
| Connection | 3/8" |
| Stroke | 100 mm |
| Length | 190 mm |
| Diameter Outside | 40 mm |
| Diameter Bolt | 14 mm |
| Diameter Rod | 25 mm |
