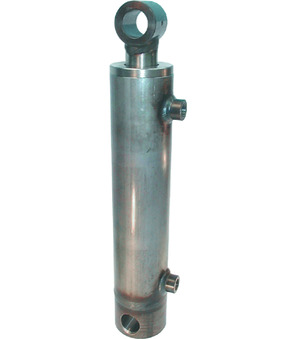

Hydraulic cylinder Double acting HFR2S0600300150

Hydraulic cylinder Double acting HFR2S0600300150

Hydraulic cylinder Double acting Series HFR; Weld-on plug socket, Mounting hole in rod and bottom; Piston-rod Made of steel C45, 25µm chromium plated +/-5µm; Cylinder tube St 52.3 DIN2393 ISO H9; Seals NBR; Temperature range -25...+80°C; Max.Piston speed 0,5m/s.; PMax. 200bar; Diameter Piston 60mm; Diameter Rod 30mm; Stroke 150mm; Connection 3/8"; Length 350mm; Diameter Bolt 25,25mm

Intrastat No.: 84311000
Country of origin: Italy
Weight: 6.19 Kg
Short Itemnumber:HFR2S0600300150
https://infotainment-tirol.at/web/image/product.template/74676/image_1920?unique=0406d1d

Hydraulic cylinder Double acting Series HFR; Weld-on plug socket, Mounting hole in rod and bottom; Piston-rod Made of steel C45, 25µm chromium plated +/-5µm; Cylinder tube St 52.3 DIN2393 ISO H9; Seals NBR; Temperature range -25...+80°C; Max.Piston speed 0,5m/s.; PMax. 200bar; Diameter Piston 60mm; Diameter Rod 30mm; Stroke 150mm; Connection 3/8"; Length 350mm; Diameter Bolt 25,25mm

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Connection
  • Stroke
  • Length
  • Diameter Outside
  • Diameter Bolt
  • Piston diameter
  • Diameter Rod

This combination does not exist.

Availability:
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Specifications

Connection 3/8"
Stroke 150 mm
Length 350 mm
Diameter Outside 70 mm
Diameter Bolt 25,25 mm
Piston diameter 60 mm
Diameter Rod 30 mm
